品牌：CMOSIS

型号：CMV4000-3E5C1PP

类型：通信IC

封装：-

功率：-

特色服务：-

批号：-

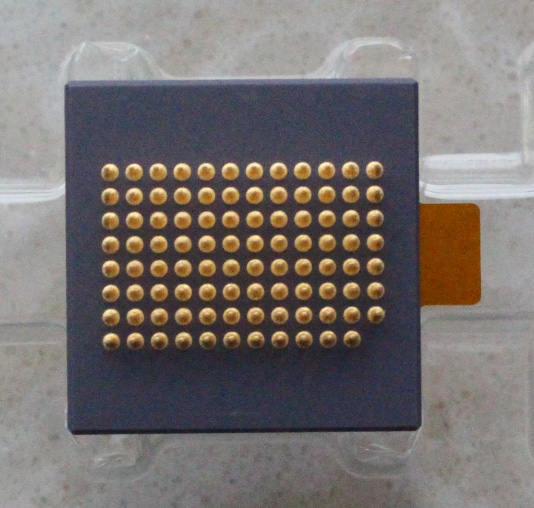

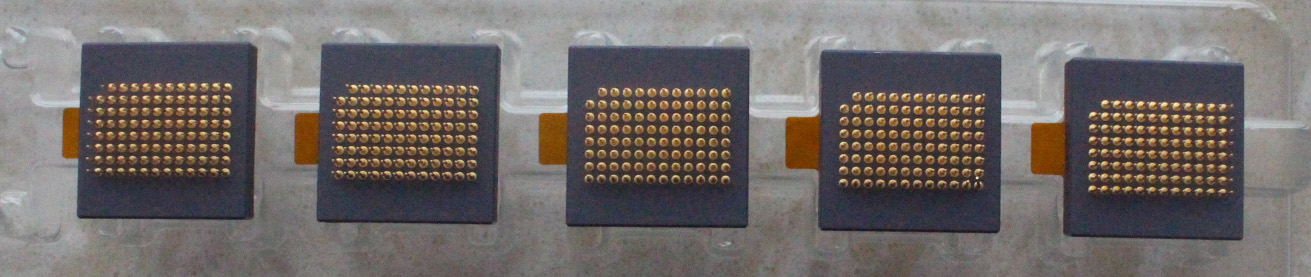

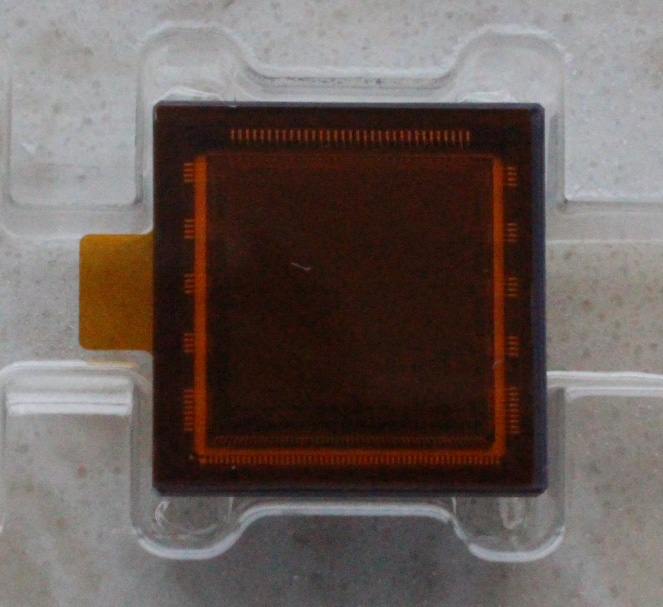

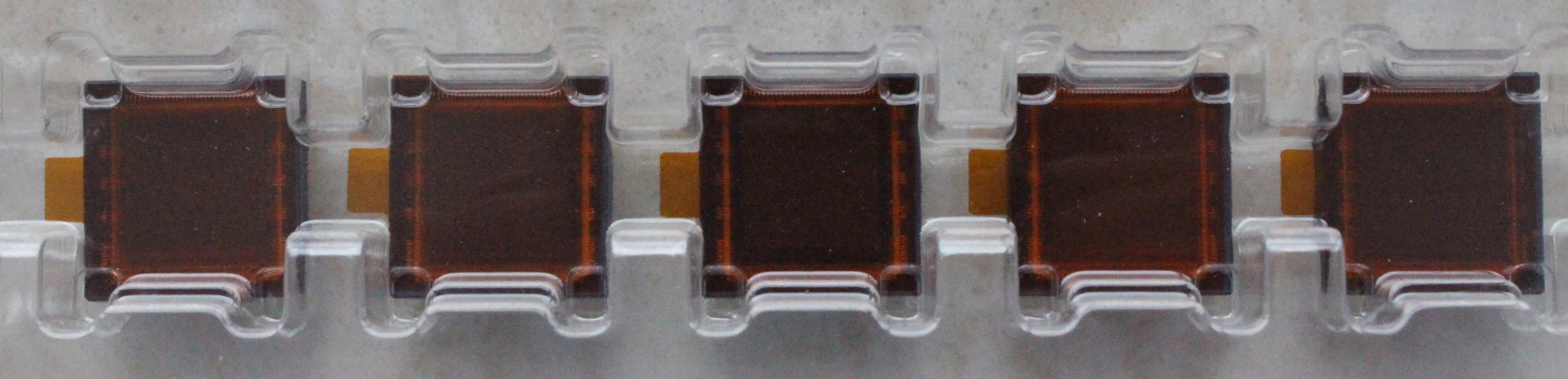

CMOSIS原装CMV4000系列芯片 CMV4000-3E5C1PP，现货供应。

CCMV4000-3E5M1PP， CMV4000-3E5M1PN，CMV4000-3E12M1PP， CMV4000-3E5C1PP， CMV4000-3E5M1LP，CMV4000-3E12M1LP， CMV4000-3E5C1LP， CMV4000ES-3E5M1CA， CMV4000ES-3E12M1CA， CMV4000ES-3E5C1CA。

联系人：刘女士

电话：

SENSOR SPECIFICATIONS
Specification	Value
Resolution	4MP - 2048(H) x 2048 (V)
Pixel   size	5.5 x 5.5 μm2
Optical Format	1&＃39;&＃39;
Shutter Type	Pipelined global   shutter with true CDS
Frame   Rate	180 fps (10 bit)
	37 fps (12 bit)
Output   Interface	16 LVDS outputs @ 480 Mbps
Sensitivity	5,56 V/lux.s
Conversion   gain	0,075 LSB/e-
Full well   charge	13500 e-
Dark noise	13 e- (RMS)
Dynamic range	60 dB
SNR max	41,3 dB
Parasitic   light sensitivity	1/50000
Extended   dynamic range	Yes, up to 90 dB
Dark current	125 e-/s (25 °C)
Fixed pattern   noise	<1 LSB (<0,1 % of full swing)
Chroma	Mono and RGB
Supply   voltage	1,8 V / 3,3 V
Power	600 mW
Operating   temperature range	(-30 to +70 degC)
RoHS   compliance	Yes
Package	95 pins µPGA
